ESK103BP Wireless Scoreboard with Team Name Display

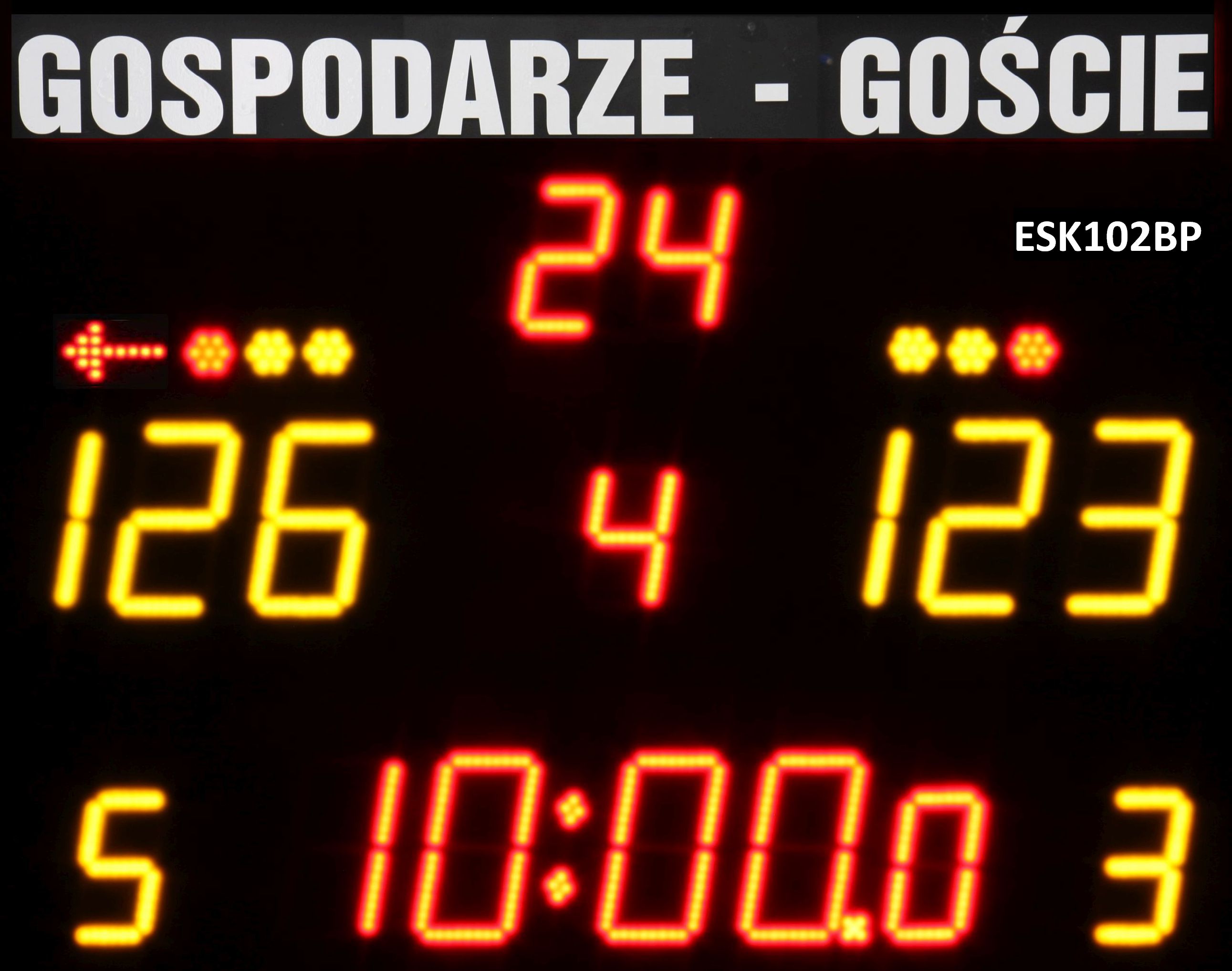

ESK102BP wireless scoreboard with permanent Home - Away label

ESK102BP wireless scoreboard with HOME - AWAY label in the language of your choice



ESK103BP wireless scoreboard with team name display

ESK103BP wireless scoreboard with team name display​

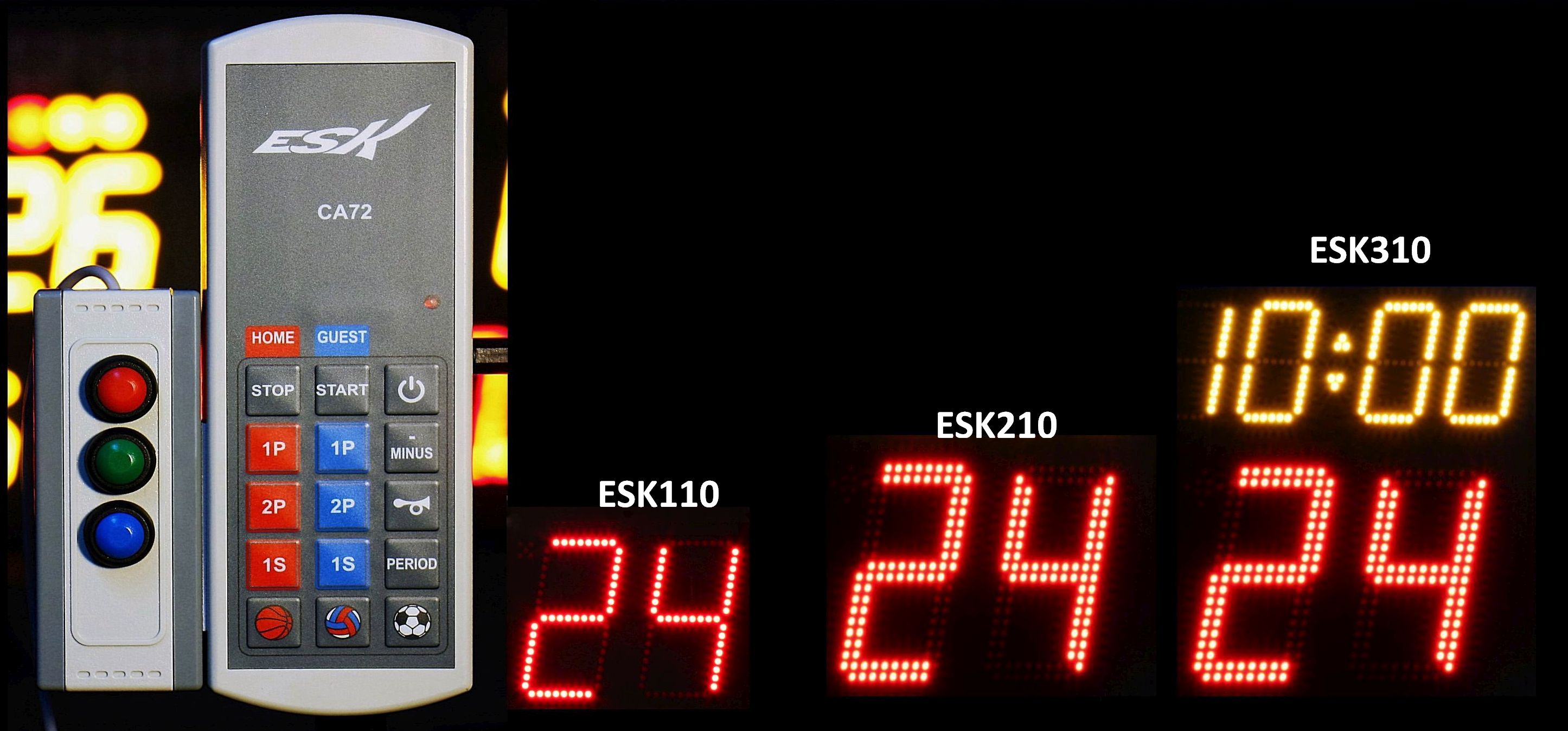

ESK wireless scoreboard remote controller and shot clock size comparison

CA72 remote controller and professional 24 seconds shot clocks for basketball

ESK103BP Specifications

  • Size 100*100*6cm, digits 15cm and 12 cm, visibility 60m.
  • Aluminum housing painted with black powder varnish with anti-reflective face plate resistant to ball impact
  • Professional device for basketball, 3x3 basketball, volleyball, handball, futsal, floorball, tennis and other sports
  • Automatic and professional game support with the ability to change the game time length and break length even between game periods
  • High quality super bright LEDs that shine beautifully
  • Displaying match results up to 3 digits (15cm digits)
  • Game time clock with an accuracy of 0.1 seconds (15cm digits)
  • Fauls of basketball teams or volleyball sets won (12cm digits)
  • A digit displaying the current game part number (digits 12cm)
  • Three dots indicating the number of time outs
  • Arrow indicating which team serves in volleyball (automatic)
  • Independent TIME OUT clock (digits 12cm)
  • Measuring time between parts of the game in the place of game time display during brakes
  • Graphics for displaying team names and advertisements on a surface of 95 * 10 cm (capacity 16 letters). Library for 126 team names. Once entered, the team names will be remembered until the next change
  • Manual and automatic horn
  • After the competition you can set the scoreboard to display time or the time alternating with the temperature
Measurement of 24 seconds for basketball

Shot cloks for basketball

  • Optionally two independent shot clocks (24 seconds timers) can be connected for basketball. Both basic models without period time display (ESK110, ESK210) and professional models with period time display (ESK310, ESK410) are available.
  • Professional control of 24 seconds timers with a separate controller
  • In the absence of independent 24 seconds timers you can enable timing of 24 seconds at the TIME OUT area of the main board

Shot clock models

  • ESK110 24 shot clock (15cm digits)
  • ESK210 24 shot clock (22cm digits)
  • ESK310 24 shot clock (22cm digits) with period time display (12cm digits)

Parameters of Displayed Digits

  • LEDs with high brightness of 500mcd and a viewing angle of 130 degrees
  • 30cm digits: 217 LEDs per digit
  • 22cm digits: 112 LEDs per digit
  • 15cm digits: 56 LEDs per digit
  • 12cm digits: 42 LEDs per digit

Technical Data

  • Mainboard power supply: 230V
  • Battery life of the wireless remote control (3 * AA): 48 months
  • Wireless remote control range: 250m
  • The 24 seconds timers are connected to the main board with OMY 3 * 0.5mm cable (17V safe voltage)
